Activiti Process List Component

• Prerequisites
• Install
• Activiti Process Instance List
  • Properties
  • Events
• Process Filters Component
  • Properties
  • Events
  • How filter the activiti process filters
• FilterParamsModel
  • How to create an accordion menu with the processes filter
• Start Process component
  • Properties
  • Events
• Process Details component
  • Properties
  • Events
• Process Instance Details Header component
  • Properties
  • Events
• Process Instance Tasks component
  • Properties
  • Events
• Process Instance Comments component
  • Properties
• Process Attachment List component
  • Properties
  • Events
• Create Process Attachment component
  • Properties
  • Events
• Build from sources
• NPM scripts
• Demo
• License

Displays lists of process instances both active and completed, using any defined process filter, and renders details for any chosen instance.

Prerequisites

Before you start using this development framework, make sure you have installed all required software and done all the necessary configuration prerequisites.

If you plan using this component with projects generated by Angular CLI, please refer to the following article: Using ADF with Angular CLI

Install

npm install ng2-activiti-processlist

Activiti Process Instance List

This component renders a list containing all the process instances matched by the parameters specified.

app.component.html

<adf-process-instance-list
    [appId]="'1'"
    [state]="'open'">
</adf-process-instance-list>

Properties

Name	Description
appId	The id of the app.
processDefinitionKey	The processDefinitionKey of the process.
state	Define state of the processes. Possible values are running, completed and all
sort	Define sort of the processes. Possible values are created-desc, created-asc, ended-desc, ended-asc
schemaColumn	List of columns to display in the process instances datatable

Example:

[
    {type: 'text', key: 'id', title: 'Id', sortable: true},
    {type: 'text', key: 'name', title: 'Name', cssClass: 'full-width name-column', sortable: true},
    {type: 'text', key: 'started', title: 'Started', sortable: true},
    {type: 'text', key: 'startedBy.email', title: 'Started By', sortable: true}
]

Events

• rowClick: Emitted when a row in the process list is clicked
• onSuccess: Emitted when the list of process instances has been loaded successfully from the server
• onError: Emitted when an error is encountered loading the list of process instances from the server

Process Filters Component

Process filters are a collection of criteria used to filter process instances, which may be customized by users. This component displays a list of available filters and allows the user to select any given filter as the active filter.

The most common usage is in driving a process instance list to allow the user to choose which process instances are displayed in the list.

<adf-process-instance-filters
    appId="1001">
</adf-process-instance-filters>

Properties

Name	Type	Description
filterParam	FilterParamsModel	The params to filter the task filter. If there is no match the default one (first filter of the list) is selected
appId	string	Display filters available to the current user for the application with the specified ID.
appName	string	Display filters available to the current user for the application with the specified name.
hasIcon	boolean	Toggle to show or not the filter's icon.

If both appId and appName are specified then appName will take precedence and appId will be ignored.

Events

Name	Description
onSuccess	Raised when the list of filters has been successfully loaded from the server
onError	Raised when an error occurs
filterClick	Raised when the user selects a filter from the list

How filter the activiti process filters

<adf-process-instance-filters
   [filterParam]="{index: 0}">
</adf-filters>

You can use inside the filterParam one of the following property.

FilterParamsModel

{
    "id": "number",
    "name": "string",
    "index": "number"
}

Name	Type	Description
id	string	The id of the task filter.
name	string	The name of the task filter, lowercase is checked.
index	number	Zero-based position of the filter in the array.

How to create an accordion menu with the processes filter

You can create an accordion menu using the AccordionComponent that wrap the activiti task filter. The AccordionComponent is exposed by the alfresco-core.

<adf-accordion>
    <adf-accordion-group
        [heading]="'Processes'"
        [isSelected]="true"
        [headingIcon]="'assessment'">
        <adf-process-instance-filters
            [appId]="appId"
            (filterClick)="onProcessFilterClick($event)"
            (onSuccess)="onSuccessProcessFilterList($event)">
        </adf-process-instance-filters>
    </adf-accordion-group>
</adf-accordion>

Start Process component

Displays Start Process, allowing the user to specify some basic details needed to start a new process instance.

<adf-start-process
    appId="YOUR_APP_ID" >
</adf-start-process>

Properties

Name	Description
appId	(required): Limit the list of processes which can be started to those contained in the specified app
variables	Variables in input to the process RestVariable

Events

Name	Description
start	Raised when the process start
cancel	Raised when the process canceled
error	Raised when the start process fail

Process Details component

This component displays detailed information on a specified process instance

<adf-process-instance-details
    processInstanceId="YOUR_PROCESS_INSTANCE_ID">
</adf-process-instance-details>

Properties

Name	Type	Description
processInstanceId	string	(required): The numeric ID of the process instance to display

Events

Name	Description
processCancelledEmitter	Raised when the current process is cancelled by the user from within the component
taskFormCompletedEmitter	Raised when the form associated with an active task is completed from within the component
showProcessDiagram	Raised when the show diagram button is clicked

Process Instance Details Header component

This is a sub-component of the process details component, which renders some general information about the selected process.

<adf-process-instance-header
    processInstance="localProcessDetails">
</adf-process-instance-details>

Properties

Name	Type	Description
processInstance	ProcessInstanceModel	(required): Full details of the process instance to display information about

Events

No events

Process Instance Tasks component

Lists both the active and completed tasks associated with a particular process instance

<adf-process-instance-tasks
    processInstanceId="YOUR_PROCESS_INSTANCE_ID"
    showRefreshButton="true">
</adf-process-instance-tasks>

Properties

Name	Type	Description
processInstanceId	string	(required): The ID of the process instance to display tasks for
showRefreshButton	boolean	(default: true): Whether to show a refresh button next to the list of tasks to allow this to be updated from the server

Events

Name	Description
taskFormCompletedEmitter	Raised when the form associated with an active task is completed from within the component

Process Instance Comments component

Displays comments associated with a particular process instance and allows the user to add new comments

<adf-process-instance-comments
    processInstanceId="YOUR_PROCESS_INSTANCE_ID">
</adf-process-instance-comments>

Properties

Name	Type	Description
processInstanceId	string	(required): The numeric ID of the process instance to display comments for

Process Attachment List component

This component displays attached documents on a specified process instance

<process-attachment-list
    [processInstanceId]="YOUR_PROCESS_INSTANCE_ID"
    (attachmentClick="YOUR_ATTACHMENT_CLICK_EMITTER_HANDLER">
</process-attachment-list>

Properties

Name	Type	Description
processInstanceId	string	(required): The ID of the process instance to display

Events

Name	Description
attachmentClick	Raised when the attachment double clicked or selected view option from context menu by the user from within the component and return a Blob obj of the object clicker
success	Raised when the attachment list fetch all the attach and return a list of attachments
error	Raised when the attachment list is not able to fetch the attachments for example network error

Create Process Attachment component

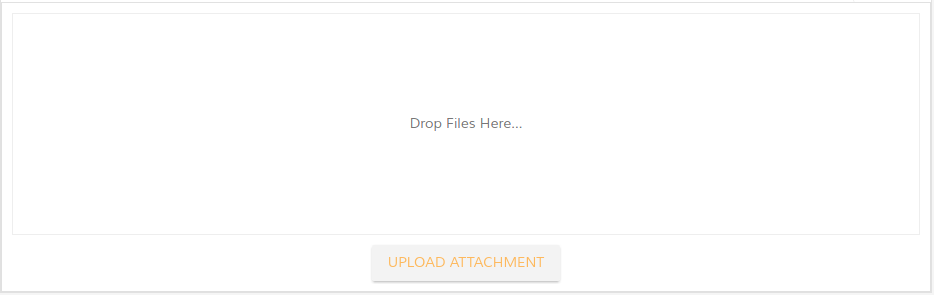

This component displays Upload Component(Drag and Click) to upload the attachment to a specified process instance

<adf-create-process-attachment
    [processInstanceId]="YOUR_PROCESS_INSTANCE_ID"
    (error)="YOUR_CREATE_ATTACHMENT_ERROR_HANDLER"
    (success)="YOUR_CREATE_ATTACHMENT_SUCCESS_HANDLER">
</adf-create-process-attachment>

Properties

Name	Type	Description
processInstanceId	string	(required): The ID of the process instance to display

Events

Name	Description
error	Raised when the error occurred while creating/uploading the attachment by the user from within the component
success	Raised when the attachment created/uploaded successfully from within the component

Build from sources

You can build component from sources with the following commands:

npm install
npm run build

The build task rebuilds all the code, runs tslint, license checks and other quality check tools before performing unit testing.

NPM scripts

Command	Description
npm run build	Build component
npm run test	Run unit tests in the console
npm run test-browser	Run unit tests in the browser
npm run coverage	Run unit tests and display code coverage report

Demo

Please check the demo folder for a demo project

cd demo
npm install
npm start

License

Apache Version 2.0
