Sidenav Layout component	v2.3.0	Active	2018-11-20

Sidenav Layout component

Displays the standard three-region ADF application layout.

Contents

• Basic Usage
  • Transclusions
• Class members
  • Properties
  • Events
• Details
  • Template context
  • menuOpenState$
  • Preserving the menu state

Basic Usage

Transclusions

The content for the header, navigation area, and main content are transcluded using three special sub-components (note the use of <ng-template> in the sub-components' body sections):

<adf-sidenav-layout
    [sidenavMin]="70"
    [sidenavMax]="220"
    [stepOver]="600"
    [hideSidenav]="false"
    [expandedSidenav]="true"
    (expanded)="setState($event)">

    <adf-sidenav-layout-header>
        <ng-template let-toggleMenu="toggleMenu">
            <div class="app-header">
                <button (click)="toggleMenu()">toggle menu</button>
            </div>
        </ng-template>
    </adf-sidenav-layout-header>

    <adf-sidenav-layout-navigation>
        <ng-template let-isMenuMinimized="isMenuMinimized">
            <div *ngIf="isMenuMinimized()" class="app-compact-navigation"></div>
            <div *ngIf="!isMenuMinimized()" class="app-expanded-navigation"></div>
        </ng-template>
    </adf-sidenav-layout-navigation>

    <adf-sidenav-layout-content>
        <ng-template>
            <router-outlet></router-outlet>
        </ng-template>
    </adf-sidenav-layout-content>

</adf-sidenav-layout>

Class members

Properties

Name	Type	Default value	Description
expandedSidenav	boolean	true	Should the navigation region be expanded initially?
hideSidenav	boolean	false	Toggles showing/hiding the navigation region.
position	"start" | "end"	"start"	The side that the drawer is attached to. Possible values are 'start' and 'end'.
sidenavMax	number		Maximum size of the navigation region.
sidenavMin	number		Minimum size of the navigation region.
stepOver	number		Screen size at which display switches from small screen to large screen configuration.

Events

Name	Type	Description
expanded	EventEmitter<boolean>	Emitted when the menu toggle and the collapsed/expanded state of the sideNav changes.

Details

This component displays the familiar ADF layout consisting of three regions: header, navigation and content.

The layout will select between a small screen (ie, mobile) configuration and a large screen configuration according to the screen size in pixels (the stepOver property sets the number of pixels at which the switch will occur).

The small screen layout uses the Angular Material Sidenav component which is described in detail on their website.

The ADF-style (ie, large screen) Sidenav has two states: expanded and compact. The navigation is always displayed regardless of the state but it will have a reduced width when compacted. Set the widths for the expanded and compact states with the sidenavMin and sidenavMax properties.

The contents of the 3 regions can be injected through Angular's template transclusion as shown in the usage example above.

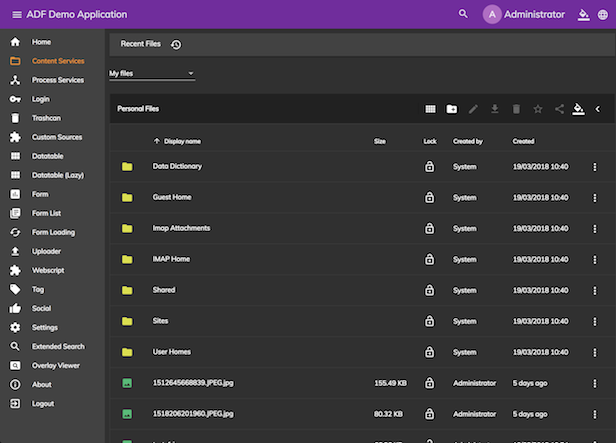

Desktop layout (screen width greater than the stepOver value):

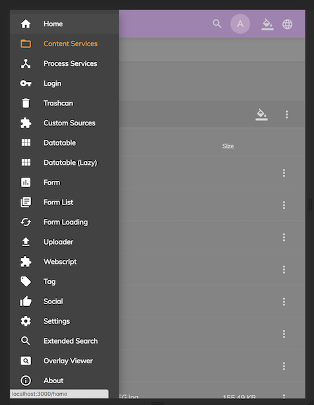

Mobile layout (screen width less than the stepOver value):

Template context

Each template is given a context containing the following methods:

• toggleMenu(): void Triggers menu toggling.

• isMenuMinimized(): boolean The expanded/compact (minimized) state of the navigation. This one only makes sense in case of desktop size, when the screen size is above the value of stepOver.

menuOpenState$

Beside the template context's isMenuMinimized variable, another way to listen to the component's menu's open/closed state is with the menuOpenState$ observable, which is driven by a BehaviorSubject in the background. The value emitted by this observable is the opposite of the isMenuMinimized template variable.

Name	Type	Default	Description
menuOpenState$	Observable<boolean>	true	Another way to listen to menu open/closed state

Every time the menu state is changed, the following values are emitted:

• true, if the menu changed to the opened state
• false, if the menu changed to the closed state

Preserving the menu state

You can preserve the state of the menu between sessions. To do this, you first need to set a property in the app.config.json file:

"sideNav" : {
    "preserveState" : true
}

When this property is set, the collapsed/expanded state will be stored in the local storage and restored when the page is reloaded or when the user next uses the app.

You can also set the default state in the app.config.json file:

"sideNav" : {
    "expandedSidenav" : true
}

Note that if preserveState is set then the current state of the sidenav (set by the user) will override this default setting.
