alfresco-ng2-components/ng2-components/ng2-activiti-analytics/README.md

Activiti Analytics Components

• Prerequisites
• Install
• Activiti Analytics List Component
  • Properties
  • Events
• Activiti Analytics Component
  • Properties
  • Events
• Analytics Generator Component
  • Properties
  • Events
• Build from sources
• NPM scripts
• Demo
• License

Prerequisites

Before you start using this development framework, make sure you have installed all required software and done all the necessary configuration, see this page.

If you plan using this component with projects generated by Angular CLI, please refer to the following article: Using ADF with Angular CLI

Install

npm install ng2-activiti-analytics

Activiti Analytics List Component

The component shows the list of all the available reports

<analytics-report-list
    [layoutType]="'LIST'">
</analytics-report-list>

Properties

Name	Type	Required	Default	Description
appId	string	optional		The application id
layoutType	string	required		Define the layout of the apps. There are two possible values: GRID or LIST. LIST is the default value
selectFirst	boolean	optional	false	Change the value to true if you want select the first item in the list as default

Events

Name	Description
onSuccess	The event is emitted when the report list are loaded
onError	The event is emitted when an error occur during the loading
reportClick	The event is emitted when the report in the list is selected

Activiti Analytics Component

The component shows the charts related to the reportId passed as input

<adf-analytics
    [appId]="1001"
    [reportId]="2006">
</adf-analytics>

Properties

Name	Type	Description
appId	string	The application id
reportId	string	The report id
hideParameters	boolean	Toggle the analytics parameters
debug	boolean	Toggle debug mode, outputs the Form values in the console log if enabled.

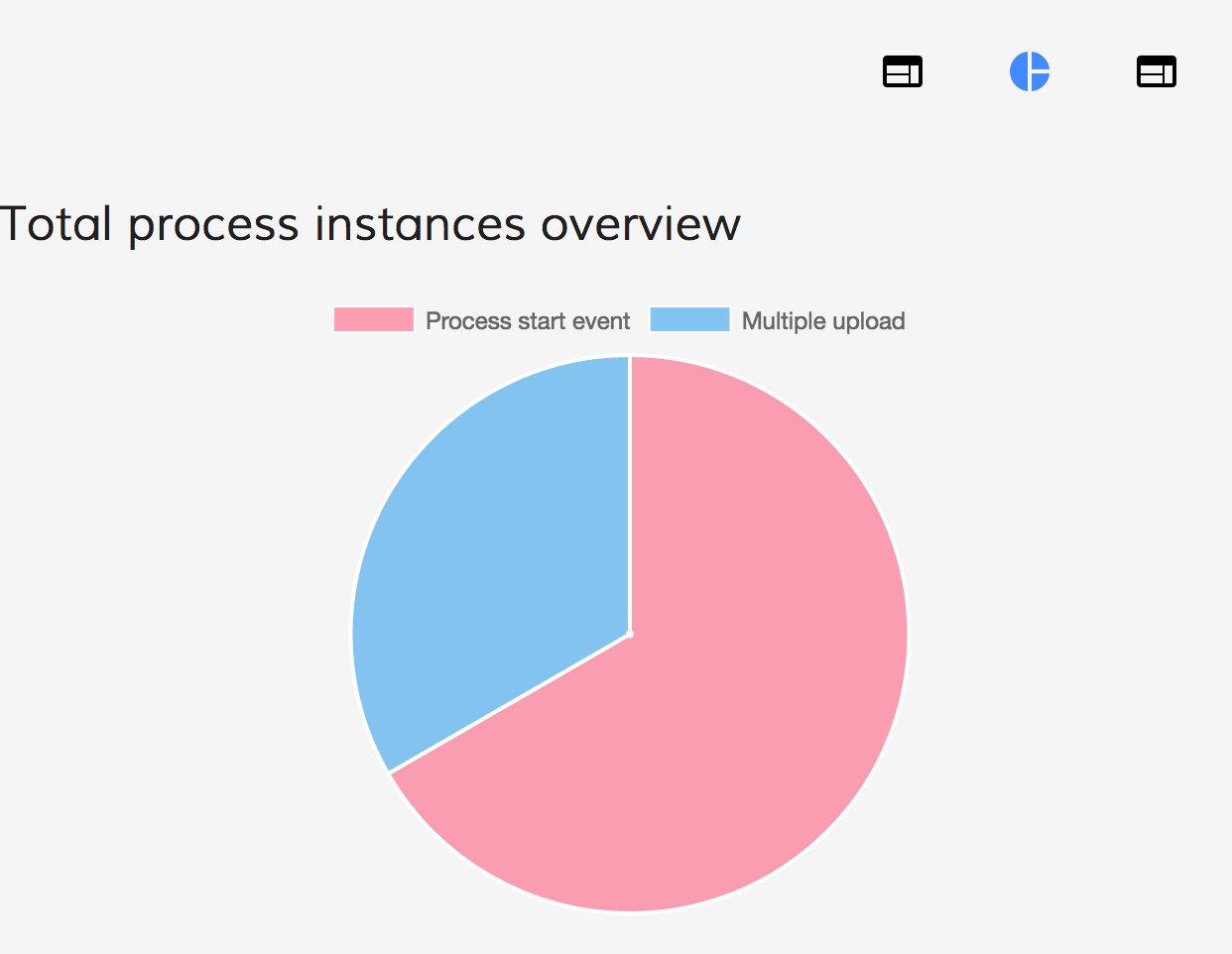

You can also hide chart parameters UI by setting the hideParameters to true:

<adf-analytics
    [appId]="appId"
    [reportId]="reportId"
    [hideParameters]="true">
</adf-analytics>

Events

Name	Description
onSuccess	The event is emitted when the report parameters are loaded
onError	The event is emitted when an error occur during the loading
reportSaved	The event is emitted when a report is saved
reportDeleted	The event is emitted when a report is deleted

Analytics Generator Component

The component generate and show the charts

<adf-analytics-generator
    [reportId]="reportId"
    [reportParamQuery]="reportParamQuery">
</adf-analytics>

Properties

Name	Type	Description
reportId	string	The report id
reportParamQuery	ReportQuery	The object contains all the parameters that the report needs

Events

Name	Description
onSuccess	Raised when the charts are loaded
onError	Raised when an error occur during the loading

Build from sources

You can build component from sources with the following commands:

npm install
npm run build

The build task rebuilds all the code, runs tslint, license checks and other quality check tools before performing unit testing.

NPM scripts

Command	Description
npm run build	Build component
npm run test	Run unit tests in the console
npm run test-browser	Run unit tests in the browser
npm run coverage	Run unit tests and display code coverage report

Demo

Please check the demo folder for a demo project

cd demo
npm install
npm start

License

Apache Version 2.0
